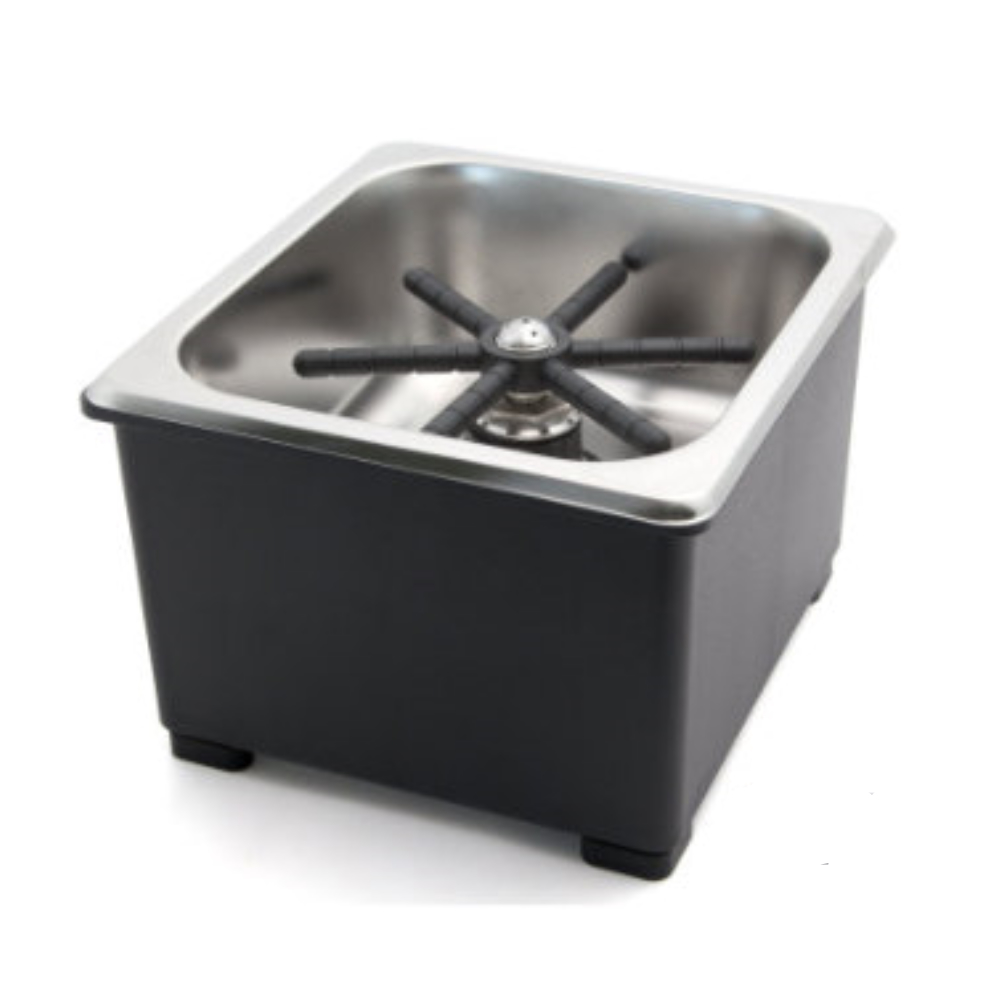

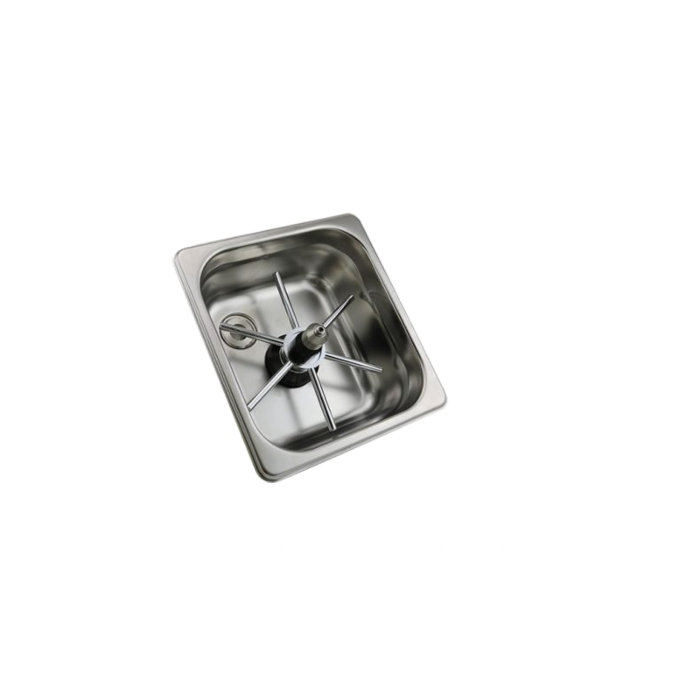

Rhino Square Pitcher Rinser (150mm) with Spinjet
Brand
Rhino Coffee Gear
SHIPS IN 1-2 DAYS
The Rhino Square Pitcher Rinser (150mm) with Spinjet was designed for espresso bars, coffee bars & smaller cafe locations who have limited bench space.
Available for Shipping Australia Wide!
The Rhino Square Pitcher Rinser (150mm) with Spinjet is Perfect for Espresso Bars & Cafes!
The Rhino Square Pitcher Rinser (150mm) with Spinjet has been designed to fit in the bench of cafes, coffee bars, and other hospitality environments with limited space.
This vessel rinser features a new actuator star design and a Rhino Spinjet Valve which at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.
Sitting at 150mm in length, the Rhino Square Pitcher Rinser is the most compact pitcher rinser in the Rhino range and is the perfect option for smaller cafes and coffee bars.
Rhino Square Pitcher Rinser (150mm) with Spinjet Features:
- New Actuator Star Design & Spinjet Valve for simultaneous spin & spray.
- Compact design is perfect for smaller bench spaces.
- Easy installation.
- Actuator Star design helps to prevent the build-up of milk residue and is easy to clean.
- 304 Stainless Steel construction.
- No sharp edges; corners are rounded for safety.
- NSF Certified
- Dimensions: 175mm (W) x 159mm (L) x 62mm (D) approx. (Depth with fittings: 110mm)
- Materials: Stainless Steel
- Drain Hose: 25mm/1" size
- Flow Rate: 120 lph approx.
Standard Inclusions:
- 1 x Sink
- 1 x Spinjet Spray Mechanism with Actuator Star
- 1 x John Guest Hose Adapter
- 1 x Drain Outlet
Depth Requirements:
We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
Rhino Square Pitcher Rinser (150mm) with Spinjet Installation Notes:
- Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. Crema Coffee Garage does not take responsibility for installation errors and provides the sizes and dimensions as a layout guide only.
- It is recommended that a Pressure Limiting Valve (PLV - also known as a Pressure Restricting Valve or Water Pressure Regulator) is used when installing on the mains water line. Click here to view.
Downloads & Links:
- Click here for Installation instructions
- Click here for Rhino Pitcher Rinser Cleaning Instructions.
